Din 906
» Resources » Dimensional Standards » Pins » Din 906
» Resources » Dimensional Standards » Pins » Din 906

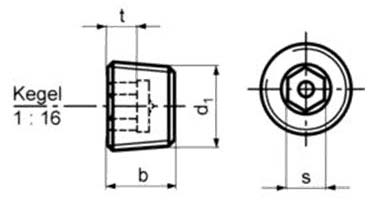

| d1 | b | s | e | t min |
|---|---|---|---|---|
| M 8 x 1 | 8 | 4 | 4.6 | 4 |
| M 10 x 1 | 8 | 5 | 5.7 | 4 |
| M 12 x 1.5 | 10 | 6 | 6.9 | 5 |
| M 14 x 1.5 | 10 | 7 | 8 | 5 |
| M 16 x 1.5 | 10 | 8 | 9.2 | 5 |
| M 18 x 1.5 | 10 | 8 | 9.2 | 5 |
| M 20 x 1.5 | 10 | 10 | 11.4 | 5 |
| M 22 x 1.5 | 10 | 10 | 11.4 | 5 |
| M 24 x 1.5 | 12 | 12 | 13.7 | 6 |
| d1 | b | s | e | t min |
|---|---|---|---|---|
| R 1/8 | 8 | 5 | 5.7 | 4 |
| R 1/4 | 10 | 7 | 8 | 5 |
| R 3/8 | 10 | 8 | 9.2 | 5 |
| R 1/2 | 10 | 10 | 11.4 | 5 |
| R 3/4 | 12 | 12 | 13.7 | 6 |
| R 1 | 12 | 17 | 19.4 | 6 |
| Size | Weight | |
|---|---|---|
| M8x1 | 2.07 | |
| M10x1 | 3.38 | |
| M12x1.5 | 6.10 | |
| M14x1.5 | 8.10 | |
| M16x1.5 | 11.0 | |
| M18x1.5 | 14.6 | |
| M20x1.5 | 17.6 | |
| M22x1.5 | 22.0 | |
| M24x1.5 | 30.8 | |
| M26x1.5 | 38.6 | |
| M27x2 | 40.2 | |
| M30x1.5 | M30x2 | 44 |
| M33x2 | 57.5 | |
| M36x1.5 | 85.2 | |
| M38x1.5 | 94.4 | |
| M39x2 | 103 | |
| M42x1.5 | M42x2 | 135 |
| M45x1.5 | M45x2 | 167 |
| M48x1.5 | M48x2 | 214 |
| M52x1.5 | M52x2 | 253 |
| M56x2 | 274 | |
| M60x2 | 350 | |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
