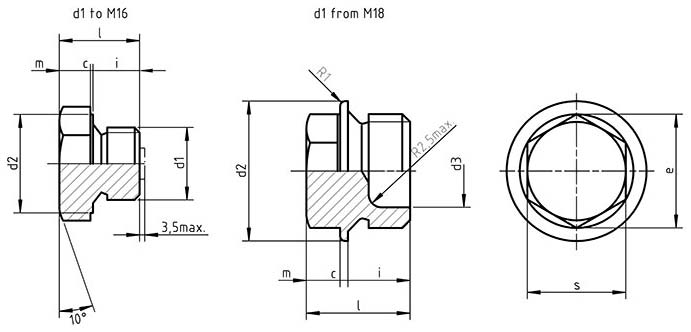

DIN 7604 C
» Resources » Dimensional Standards » Pins » DIN 7604 C
» Resources » Dimensional Standards » Pins » DIN 7604 C
| d1 | c | d2 | s=SW | t1 | h short Form A |
h long Form C |
m |
|---|---|---|---|---|---|---|---|
| M8x1 | 0.5 | 12 | 12 | - | 6 | - | 4 |
| M10x1 | 0.5 | 14 | 14 | - | 6 | - | 4 |
| M12x1.5 | 0.5 | 17 | 17 | - | 9 | - | 6 |
| M14x1.5 | 0.5 | 19 | 19 | - | 9 | - | 6 |
| M16x1.5 | 0.5 | 21 | 22 | - | 9 | - | 6 |
| M18x1.5 | 2 | 23 | 17 | 8 | 9 | - | 6 |
| M22x1.5 | 2 | 27 | 19 | 8.8 | 9 | 12 | 6 |
| M26x1.5 | 2.5 | 31 | 22 | 8.8 | 9 | 12 | 8 |
| M30x1.5 | 2.5 | 36 | 22 | 8.8 | 9 | 12 | 8 |
