DIN 7346

Equivalent Standards

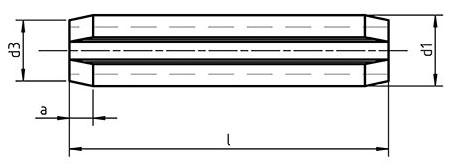

DIN 7346 Dowel pins, light version Dimensions

Nominal diameter	a	before insertation			s	shearing force in kN
		d1 min	d1 max	d2 approx.		Single Shear	Double Shear
2	0.2	2.3	2.4	1.9	0.2	0.75	1.5
2.5	0.25	2.8	2.9	2.3	0.25	1.2	2.4
3	0.25	3.3	3.5	2.7	0.3	1.75	3.5
3.5	0.3	3.8	4	3.1	0.35	2.3	4.6
4	0.5	4.4	4.6	3.4	0.5	4	8
4.5	0.5	4.8	5	3.8	0.5	4.4	8.8
5	0.5	5.4	5.6	4.4	0.5	5.2	10.4
6	0.7	6.4	6.7	4.9	0.75	9	18
7	0.7	7.5	7.8	6	0.75	10.5	21
8	1.5	8.5	8.8	7	0.75	12	24
10	2	10.5	10.8	0.5	1	20	40
11	2	11.5	11.8	9.5	1	22	44
12	2	12.5	12.8	10.5	1	24	48
13	2	13.5	13.8	11	1.25	33	66
14	2	14.5	14.8	11.5	1.5	42	84
16	2	16.5	16.8	13.5	1.5	49	98
18	2	18.5	18.9	15	1.75	63	126
20	2	20.5	20.9	16.5	2	79	158
21	2	21.5	21.9	17.5	2	84	168
23	3	23.5	23.9	19.5	2	92	184
25	3	25.5	25.9	21.5	2	101	202
28	3	28.5	28.9	23.5	2.5	140	280
30	3	30.5	30.9	25.5	2.5	151	302
35	3	35.5	35.9	28.5	3.5	245	490
40	4	40.5	40.9	32.5	4	317	634
45	4	45.5	45.9	37.5	4	360	720
50	4	50.5	50.9	40.5	5	500	1000
