Equivalent Standards

DIN 7 / ISO 2338 : Dowel Pins (M6 Tolerance)

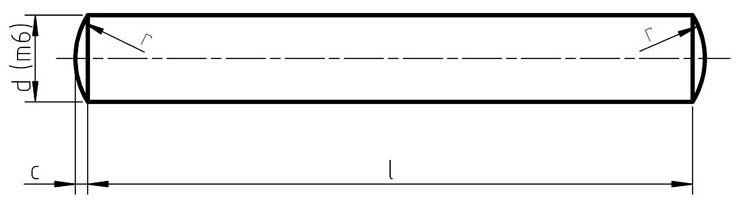

DIN 7 Dowel Pins Dimensions

d1 m6 r c max.
0.8 0.8 0.12
1 1 0.15
1.5 1.5 0.23
2 2 0.3
2.5 2.5 0.4
3 3 0.45
4 4 0.6
5 5 0.75
6 6 0.9
8 8 1.2
10 10 1.5
12 12 1.8
d1 L W
0.8 3 0.012
0.8 4 0.016
0.8 5 0.020
0.8 6 0.024
0.8 8 0.032
0.8 10 0.040
0.8 12 0.048
1 3 0.018
1 4 0.025
1 5 0.032
1 6 0.038
1 8 0.050
1 10 0.062
1 12 0.074
1.5 3 0.044
1.5 4 0.058
1.5 5 0.072
1.5 6 0.085
1.5 8 0.113
1.5 10 0.141
1.5 12 0.168
1.5 14 0.195
1.5 16 0.225
2 4 0.105
2 5 0.130
2 6 0.155
2 8 0.203
2 10 0.253
2 12 0.302
2 14 0.351
2 16 0.405
2 18 0.521
2 20 0.500
2 24 0.598
2.5 4 0.165
2.5 5 0.204
2.5 6 0.243
2.5 8 0.320
2.5 10 0.397
2.5 12 0.474
2.5 14 0.55
2.5 16 0.627
2.5 18 0.705
2.5 20 0.782
2.5 24 0.937
3 4 0.245
3 5 0.300
3 6 0.355
3 8 0.466
3 10 0.577
3 12 0.688
3 14 0.799
3 16 0.910
3 18 1.020
3 20 1.130
3 24 1.350
4 5 0.440
4 6 0.640
4 8 0.840
4 10 1.040
4 12 1.230
4 14 1.440
4 16 1.630
4 18 1.830
4 20 2.030
4 24 2.430
4 28 2.820
4 32 3.210
4 36 3.60
4 40 4.00
5 6 1.02
5 8 1.33
5 10 1.64
5 12 1.95
5 14 2.26
5 16 2.57
5 18 2.88
5 20 3.80
5 24 3.91
5 28 4.42
5 32 5.03
5 36 5.65
5 40 6.27
5 45 7.03
5 50 7.80
6 8 1.97
6 10 2.41
6 12 2.85
6 14 3.29
6 16 3.73
6 18 4.17
6 20 4.61
6 24 5.50
6 28 6.40
6 32 7.30
6 36 8.19
6 40 9.08
6 45 10.20
6 50 11.30
6 60 13.50
8 10 4.37
8 12 5.16
8 14 5.95
8 16 6.74
8 18 7.53
8 20 8.31
8 24 9.89
8 28 11.50
8 32 13.00
8 36 14.60
8 40 16.20
8 50 20.10
8 60 24.00
8 70 28.00
8 80 32.00
10 12 8.24
10 14 9.47
10 16 10.70
10 18 11.90
10 20 13.20
10 24 15.60
10 28 18.00
10 32 20.60
10 36 23.10
10 40 25.50
10 45 28.60
10 50 31.70
10 60 37.90
10 70 44.10
10 80 50.30
10 90 56.50
10 100 62.70
12 14 13.80
12 16 15.60
12 18 17.40
12 20 19.20
12 24 22.80
12 28 26.40
12 32 30.00
12 36 33.60
12 40 37.20
12 45 41.70
12 50 46.20
12 60 55.20
12 70 64.10
12 80 73.00
12 90 82.10
12 100 91.00

DIN 7 Dowel Pins Weights

Diameter M1 M1.2 M1.5 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20
Length
3 0.018 0.027 0.044
4 0.025 0.036 0.058 0.105 0.165 0.245
5 0.032 0.045 0.072 0.130 0.204 0.300 0.341 0.879
6 0.038 0.054 0.085 0.155 0.243 0.355 0.640 1.020 1.53
8 0.048 0.072 0.113 0.203 0.320 0.466 0.840 1.330 1.97 3.58
10 0.062 0.090 0.141 0.253 0.397 0.577 1.040 1.640 2.41 4.37 7.01 10.2
12 0.074 0.107 0.168 0.302 0.474 0.688 1.230 1.950 2.85 5.16 8.24 12.0
14 0.125 0.195 0.351 0.550 0.799 1.440 2.260 3.29 5.95 9.47 13.8
16 0.224 0.401 0.627 0.910 1.630 2.570 3.73 6.74 10.70 15.6 28.3
18 0.451 0.705 1.020 1.830 2.880 4.17 7.53 11.90 17.4 31.5
20 0.500 0.782 1.130 2.030 3.190 4.61 8.31 13.20 19.2 34.7 56.4
24 0.937 1.350 2.430 3.800 5.50 9.89 15.60 22.8 41.1 66.2
28 1.570 2.820 4.420 6.40 11.50 18.00 26.4 47.5 76.0
32 1.790 3.210 5.030 7.30 13.00 20.60 30.0 53.9 85.8
36 3.600 5.650 8.19 14.60 23.10 33.6 60.3 95.6
40 4.000 6.270 9.08 16.20 25.50 37.2 66.6 105.0
45 7.030 10.20 18.10 28.60 41.7 74.5 118.0
50 7.800 11.30 20.10 31.70 46.2 82.5 130.0
55 12.40 22.10 34.80 50.7 90.4 142.0
60 13.50 24.00 37.90 55.2 98.4 155.0
70 28.00 44.10 64.1 114.0 179.0
80 32.00 50.30 73.0 130.0 204.0
90 56.50 82.1 146.0 228.0
100 62.70 91.0 161.0 253.0
120 109.0 192.0 302.0
140 224.0 351.0

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
