DIN 1476
» Resources » Dimensional Standards » Pins » DIN 1476
» Resources » Dimensional Standards » Pins » DIN 1476

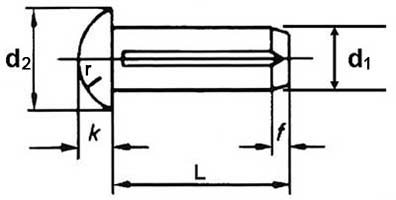

| d1 | Tolerance | d2 | k | f | r |
|---|---|---|---|---|---|
| 1.4 | 0/0.05 | 2.5 | 0.8 | 0.5 | 1.4 |
| 1.6 | 0/0.05 | 2.8 | 1 | 0.5 | 1.6 |
| 1.7 | 0/0.05 | 3 | 1 | 0.5 | 1.6 |
| 2 | 0/0.05 | 3.5 | 1.2 | 0.5 | 1.9 |
| 2.3 | - | 4 | 1.4 | - | 2.2 |
| 2.5 | - | 4.4 | 1.5 | 0.7 | 2.4 |
| 2.6 | 0/-0.075 | 4.5 | 1.6 | - | 2.4 |
| 3 | 0/-0.075 | 5.2 | 1.8 | 1.8 | 2.8 |
| 4 | 0/-0.1 | 7 | 2.4 | 2.4 | 3.8 |
| 5 | 0/-0.1 | 8.8 | 3 | 3 | 4.6 |
| 6 | 0/-0.1 | 10.5 | 3.6 | - | 5.7 |
