DIN 1445

Equivalent Standards

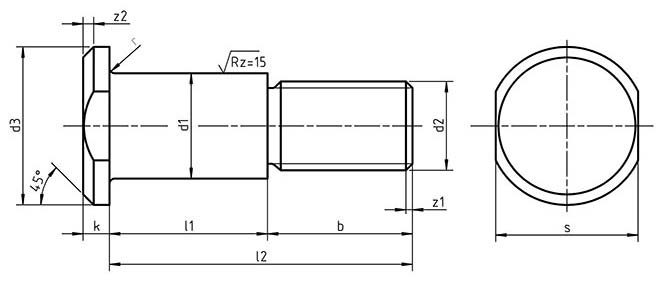

DIN 1445 Clevis pins with head and stud end Dimensions

d1	b	d2	d3	k	r	s	z2
h11	min.		h14	js14			approx.
8	11	M6	14	3	0.6	11	1
10	14	M8	18	4	0.6	13	1
12	17	M10	20	4	0.6	17	1.6
14	20	M12	22	4	0.6	19	1.6
16	20	M12	25	4.5	0.6	22	1.6
18	20	M12	28	5	1	24	1.6
20	25	M16	30	5	1	27	2
22	25	M16	33	5.5	1	30	2
24	29	M20	36	6	1	32	2
27	29	M20	40	6	1	36	2
30	36	M24	44	8	1	36	2
33	36	M24	47	8	1	41	2
36	39	M27	50	8	11	46	2
40	42	M30	55	8	1	50	2
45	45	M33	60	9	1	55	2
50	49	M36	66	9	1	60	2
55	52	M39	73	11	1	65	3
60	58	M42	78	12	1	70	3
70	61	M45	90	13	1	80	3
80	68	M52	100	13	1	90	3
90	7	M56	110	13	1	100	3
100	84	M64	120	13	1	110	3
