DIN 1444
» Resources » Dimensional Standards » Pins » DIN 1444
» Resources » Dimensional Standards » Pins » DIN 1444

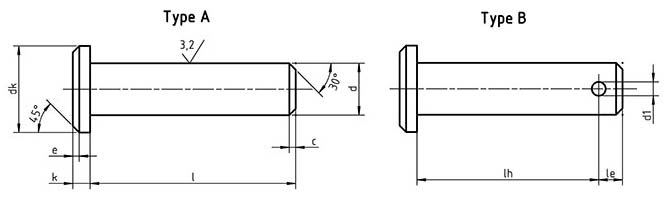

| d h11 | dk h14 | d1 H13 | c max. | e | k js14 | le min. | r |
|---|---|---|---|---|---|---|---|
| 4 | 6 | 1 | 1 | 0.5 | 1 | 2.2 | 0.6 |
| 5 | 8 | 1.2 | 2 | 1 | 1.6 | 2.9 | 0.6 |
| 6 | 10 | 1.6 | 2 | 1 | 2 | 3.2 | 0.6 |
| 8 | 14 | 2 | 2 | 1 | 3 | 3.5 | 0.6 |
| 10 | 18 | 3.2 | 2 | 1 | 4 | 4.5 | 0.6 |
| 12 | 20 | 3.2 | 3 | 1.6 | 4 | 5.5 | 0.6 |
| 14 | 22 | 4 | 3 | 1.6 | 4 | 6 | 0.6 |
| 16 | 25 | 4 | 3 | 1.6 | 4.5 | 6 | 0.6 |
| 18 | 28 | 5 | 3 | 1.6 | 5 | 7 | 1 |
| 20 | 30 | 5 | 4 | 2 | 5 | 8 | 1 |
| 22 | 33 | 5 | 4 | 2 | 5.5 | 8 | 1 |
| 24 | 36 | 6.3 | 4 | 2 | 6 | 9 | 1 |
