Din 1

Equivalent Standards

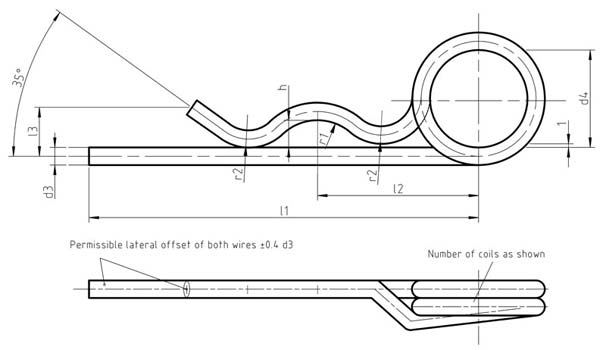

DIN 11024 D Spring cotters of a Bolts Dimensions

d1 H13	d2	d3	d4	l1	l2	l3	h	r1	r2	kg/100pcs
2.5	9 - 11.2	2.25	20	42	24	5.5	2.5	5.6	4	0.59
3.2	11.2 - 14	2.8	20	48	26	7	3	7	5	0.99
4	14 - 20	3.6	20	64	32	10	4.5	10	6.5	1.89
5	20 - 26	4.5	25	80	39	12.5	7	13	8	3.54
6.3	26 - 34	5.6	25	97	45	16	9	17	10	6.18
7	34 - 45	6.3	30	125	56	21	12.5	22.5	11.5	9.7
8	45 - 56	7	30	150	63	25.5	17.5	28	12.5	13.4
