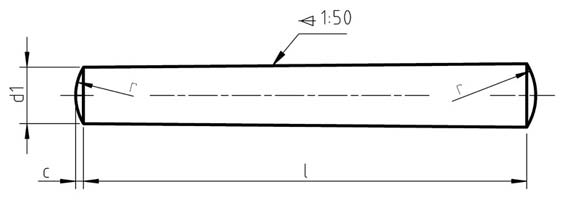

DIN 1 Taper Pins Dimensions

d1 c max r
2 0.3 2
3 0.45 3
4 0.6 4
5 0.75 5
6 0.9 6
8 1.2 8
10 1.5 10
12 1.8 12
16 2.5 16

DIN 1 Taper Pins Weights

Diameter M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16
Length
8 0.058
10 0.075 0.160
12 0.095 0.206 0.341 0.526
14 0.114 0.240 0.404 0.620 0.88
16 0.135 0.295 0.468 0.712 1.02 1.78
20 0.384 0.605 0.914 1.29 2.23 3.47
30 0.991 1.470 2.04 3.48 5.31 7.76 13.1
40 2.100 2.88 4.84 7.30 10.3 17.8 27.6 39.6 69.8
45 3.35 5.56 8.35 11.7 20.2 31.2 44.6 78.6
50 3.83 6.31 9.45 13.4 22.7 34.9 49.8 87.4
55 7.12 10.60 14.7 25.3 38.8 55.2 96.4
60 7.94 11.80 16.3 27.8 42.5 60.2 105.0
70 14.20 19.7 33.2 50.4 71.8 123.0
80 24.3 38.8 58.5 83.0 143.0
90 28.4 44.5 67.0 94.5 162.0
100 32.6 50.5 75.7 106.0 181.0
120 63.5 94.0 130.0 222.0
140 114.0 157.0 265.0

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
