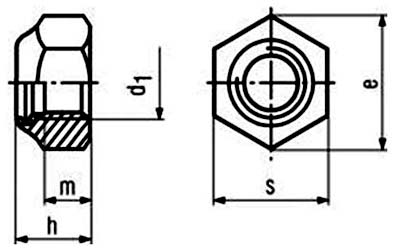

DIN 985 Nylon Insert Lock Nuts / Nylock Nuts Dimensions

d1	s	e	m1 min	m min	h
M 2.5	5	5.51	2	-	3.8
M 3	5.5	6.01	2.4	1.65	4
M 4	7	7.66	2.9	2.2	5
M 5	8	8.79	3.2	2.75	5
M 6	10	11.05	4	3.3	6
M 8	13	14.38	5.5	4.4	8
M 10	17	18.9	6.5	5.5	10
M 12	19	21.1	8	6.6	12
M 14	22	24.49	9.5	7.7	14
M 16	24	26.75	10.5	8.8	16
M 18	27	29.56	13	9.9	18.5
M 20	30	32.95	14	11	20
M 24	36	39.55	15	13.2	24

DIN 985 Nylon Insert Hex Lock Nuts Weights

Size	Weight
M3	0.5
M4	1.0
M5	1.4
M6	2.4
M7	3.0
M8	5.1
M10	10.6
M12	17.2
M14	26
M16	34
M18	45
M20	65
M22	75
M24	100
M27	162
M30	212
M33	317
M36	415
M39	499
M42	628
M45	771
M48	998

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
