DIN 982

Equivalent Standards

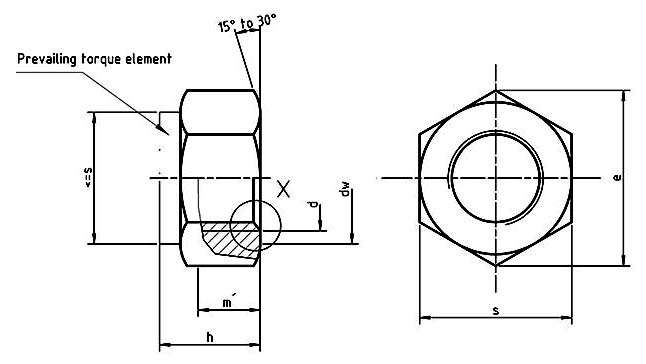

DIN 982 Prevailing torque nuts with nonmetalic insert Dimensions

Thread d			p	da		dw	e	h		m	m	s		Weight (7.85 kg/dm3) kg/1000pcs
				min	max	min	min	max	min	min	min	max	min
M5	-	-	0.8	5	5.75	6.9	8.79	6.3	6	4.4	3.52	8	7.78	1.4
M6	-	-	1	6	6.75	8.9	11.05	8	7.7	4.9	3.92	10	9.78	3.1
M7	-	-	1	7	7.75	9.6	12.12	8.5	8.2	6.14	4.91	11	10.73	3.2
M8	M8x1	-	1.25	8	8.75	11.6	14.38	9.5	9.14	6.44	5.15	13	12.73	6
M10	M10x1	M10x1.25	1.5	10	10.8	15.6	18.9	11.5	11.14	8.04	6.43	17	16.73	11.7
M12	M12x1.5	M12x1.25	1.75	12	13	17.4	21.1	14	13.64	10.37	8.3	19	19.67	16.6
M14	M14x1.5	-	2	14	15.1	20.5	24.49	16	15.3	12.1	9.68	22	21.67	21
M16	M16x1.5	-	2	16	17.3	22.5	26.75	18	17.3	14.1	11.28	24	23.67	37.8
M18	M18x2	M18x1.5	2.5	18	19.5	24.9	29.56	20	19.16	15.1	12.08	27	26.16	51.6
M20	M20x2	M20x2	2.5	20	21.6	27.7	32.95	22	20.7	16.9	13.52	30	29.16	68
M22	M22x2	M22x2	2.5	22	23.7	29.5	35.03	25	23.7	18.1	14.48	32	31	86
M24	M24x2	-	3	24	25.9	33.2	29.55	28	26.7	20.2	16.16	36	35	127
