DIN 936

Equivalent Standards

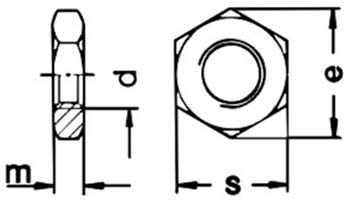

DIN 936 Course Threads Dimensions

d1	s	e	m
M 3	-	-	-
M 4	-	-	-
M 5	8	8.79	-
M 6	10	11.05	-
M 8	13	14.38	5
M 10	17	18.9	6
M 12	19	21.10	7
M 14	22	24.49	8
M 16	24	26.75	8
M 18	27	29.56	9
M 20	30	32.95	9
M 22	32	35.03	10
M 24	36	39.55	10
M 27	41	45.20	12
M 30	46	50.85	12
M 36	55	60.79	14
M 42	65	71.3	16
M 48	-	-	-

DIN 936 Hex Jam Nuts Weights

Size	Weight
M8	4.0
M10	8.6
M12	12.1
M14	18.2
M16	20.1
M18	29.6
M20	36.3
M22	43.8
M24	58
M27	90
M30	110
M33	155
M36	190
M39	260
M42	307

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
