DIN 935

Equivalent Standards

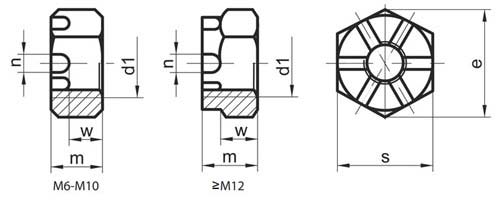

DIN 935 Hexagon Castle Nuts Dimensions

d1	s	m max	w max	n min	e min
M 4	7	5	3.2	-	7.66
M 5	8	6	4	1.4	8.79
M 6	10	7.5	5	2	11.05
M 7	11	8	5.5	2	12.12
M 8	13	9.5	6.5	2.5	14.38
M 10	16 (17)	12	8	2.8	17.77 (18.90)
M 12	18 (19)	15	10	3.5	20.03 (21.10)
M 14	21 (22)	16	11	3.5	23.35 (24.49)
M 16	24	19	13	4.5	26.75
M 18	27	21	15	4.5	29.56
M 20	30	22	16	4.5	32.95
M 22	34 (32)	26	18	5.5	37.29 (35.03)
M 24	36	27	19	5.5	39.55
M 27	41	30	22	5.5	45.20
M 30	46	33	24	7	50.85
M 33	50	35	26	7	55.37
M 36	55	38	29	7	60.79
M 39	60	40	31	7	66.44
M 42	65	46	34	9	71.30
M 45	70	48	36	9	76.95
M 48	75	50	38	9	82.60
M 52	80	54	42	9	88.25
M 56	85	57	45	9	93.56
M 60	90	63	48	11	99.21
M 64	95	66	51	11	104.86
M 68	100	69	54	-	110.51
M 72	105	73	58	-	116.16
M 76	110	76	61	-	121.81
M 80	115	79	64	-	127.46
M 90	130	92	72	-	144.08
M 100	145	100	80	-	161.02

DIN 935 Hex Castle nuts Weights

Size	Weight
M4	1.12
M5	2.30
M6	3.16
M7	3.96
M8	7.35
M10	15.8
M12	20.0
M14	27.0
M16	38.9
M18	57.5
M20	75.2
M22	93.0
M24	131
M27	192
M30	264
M33	333
M36	447
M39	584
M42	710
M45	860
M48	1060
M52	1300

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
