DIN 934 Fine Pitch

Equivalent Standards

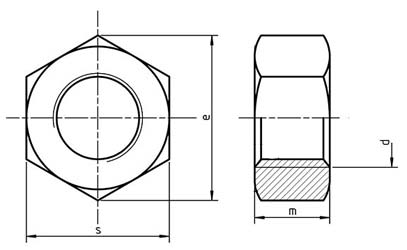

DIN 934 Hex Nut Dimensions (Fine Threads)

d	s max.	e min.	m max.
M6 x 0.75	10	11.05	5
M8 x 1	13	14.38	6.5
M10 x 1	17	18.9	8
M10 x 1.25	17	18.9	8
M12 x 1	19	21.1	10
M12 x 1.25	19	21.1	10
M12 x 1.5	19	21.1	10
M14 x 1.5	22	24.49	11
M16 x 1.5	24	26.75	13
M18 x 1.5	27	29.56	15
M18 x 2	27	29.56	15
M20 x 1.5	30	32.95	16
M20 x 2	30	32.95	16
M22 x 1.5	32	35.03	18
M22 x 2	32	35.03	18
M24 x 1.5	36	39.55	19
M24 x 2	36	39.55	19
M27 x 1.5	41	45.2	22
M27 x 2	41	45.2	22
M30 x 1.5	46	50.85	24
M30 x 2	46	50.85	24
M30 x 3	46	50.85	24
M33 x 1.5	50	55.37	26
M33 x 2	50	55.37	26
M36 x 1.5	55	60.79	29
M36 x 2	55	60.79	29
M36 x 3	55	60.79	29
M39 x 3	60	66.44	31
M42 x 3	65	71.3	34
M45 x 3	70	76.95	36
M48 x 3	75	82.6	38

DIN 934 Fine Pitch Hex Nuts Weights

Sizes	Weights (Kg)
M1	0.030
M1.2	0.054
M1.4	0.063
M1.6	0.076
M2	0.142
M2.5	0.280
M3	0.384
M3.5	0.514
M4	0.81
M5	1.23
M6	2.50
M7	3.12
M8	5.20
M10	11.6
M12	17.3
M14	25.0
M16	33.3
M18	49.4
M20	64.4
M22	79
M24	110
M27	165
M30	223
M33	288
M36	393
M39	502
M42	652
M45	800
M48	977
M52	1220
M56	1420
M60	1690
M64	1980
M68	2300
M72	2670
M76	3040
M80	3440
M85	3930
M90	4930
M100	6820

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
