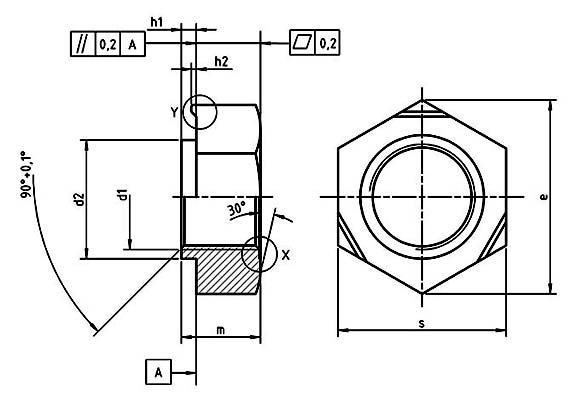

DIN 929 Hexagon weld nuts Dimensions

Thread d1			b		d2	d3	d4	e	h1		h2		m	s	weight (7.85 kg/dm3) kg/1000pcs
				tolerance	d11	h13	max	min		tolerance		tolerance	h14	h13
M3	-	-	0.8	± 0.2	4.5	4.5	3.15	8.15	0.55	0-0.1	0.25	0	3	7.5	0.78
M4	-	-	0.8	± 0.2	6	6	4.2	9.83	0.65	0-0.1	0.35	-0.1	3.5	9	1.13
M5	-	-	0.8	± 0.2	7	7	5.25	10.95	0.7	0-0.1	0.4		4	10	1.73
M6	-	-	0.9	± 0.22	8	8	6.3	12.02	0.75	0-0.15	0.4		5	11	2.5
M8	M8 x 1	-	1	± 0.25	10.5	10.5	8.4	15.38	0.9	0-0.15	0.5	0	6.5	14	5.27
M10	M10 x 1.25	M10 x 1	1.25	± 0.3	12.5	12.5	10.5	18.74	1.15	0-0.2	0.65	-0.15	8	17	9.58
-	-	7/16-20 UNF-2B	1.25	± 0.3	12.5	13.5	11.7	18.74	1.15	0-0.2	0.65	0	10	17	12
-	-	7/16-20 UNF-2B	1.25	± 0.3	13.5	13.5	11.7	20.91	1.4	0-0.2	0.8	-0.2	10	19	14
M12	M12 x 1.25	M12 x 1.5	1.25	± 0.3	14.8	14.8	12.6	20.91	1.4	0-0.2	0.8		10	19	13.7
M14	M14 x 1.5	-	1.5	± 0.4	16.8	16.8	14.7	24.27	1.8	0-0.2	1		11	22	21.3
M16	M16 x 1.5	-	1.5	± 0.4	18.8	18.8	16.8	26.51	1.8	0-0.2	1		13	24	28.5

Weight Chart for DIN 929 Hexagon Weld Nuts

Size	Weight
M3	0.78
M4	1.13
M5	1.73
M6	2.50
M7	3.24
M8	5.27
M10	9.58
M12	13.70
M14	21.30
M16	28.50

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
