DIN 80705

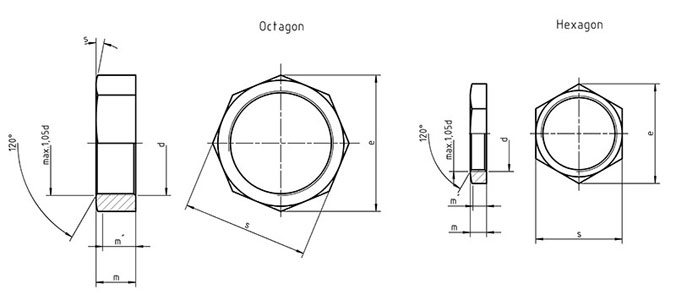

80705 Thin nuts with fine pitch thread and with small widths across flats Dimensions

Thread d	e min.	m	s		weight kg/pc
			Hexagon	Octagon
M56	75.7	22	70	-	0.32
M60	81.2	22	75	-	0.36
M64	86.6	24	80	-	0.45
M68	92	24	85	-	0.51
M72x6	97.4	24	90	-	0.56
M76x6	103	26	95	-	0.67
M80x6	108	26	100	-	0.74
M85x6	114	26	105	-	0.81
M90x6	119	26	110	-	0.84
M95x6	124	28	115	-	0.95
M100x6	130	28	120	-	1
M105x6	141	28	130	-	1.3
M110x6	141	28	130	-	1.1
M115x6	146	30	135	-	1.2
M120x6	157	30	145	-	1.5
M125x6	162	30	150	-	1.7
M130x6	168	30	155	-	1.7
M140x6	179	35	165	-	2.2
M12x1.5	18.72	6	17	-	0.7
M14x1.5	20.88	6	19	-	0.82
M16x1.5	23.91	6	22	-	1.1
M18x1.5	26.17	6	24	-	1.2
M20x1.5	29.56	6	27	-	1.6
M22x1.5	32.95	7	30	-	2.3
M24x1.5	35.03	7	32	-	2.5
M26x1.5	39.55	8	36	-	4
M30x2	45.2	8	41	-	5
M36x2	50.85	9	46	-	6.2
M42x2	55.37	9	50	-	5.9
M45x2	60.79	9	55	-	7.7
M52x2	70.3	10	-	65	11.2
