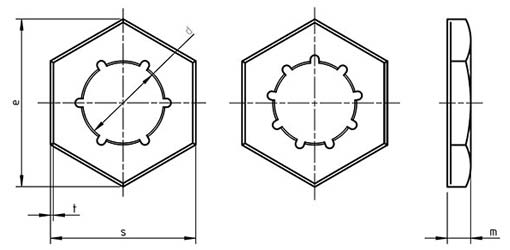

DIN 7967 Self-locking counter nuts PAL Dimensions

For
thread
d for thread e m s f for thread u v Weight kg/1000 pcs
Series 1 Series 2 Series 3 Ser.1 Ser.2 Ser. 3 approx. h13 Ser. 1 Ser.2 Ser.3 min. min. Ser.1 Ser.2 Ser.3
M4 - - 3.5 - - 8.1 2.5 7 0.3 - - 2.5 5.7 0.17 - -
M5 - - 4.5 - - 9.2 2.5 8 0.4 - - 2.5 6.5 0.28 - -
M6 - - 5.3 - - 11.5 3 10 0.4 - - 3 8 0.4 - -
M8 M8x1 - 6.9 7.1 - 15 3.5 13 0.5 0.4 - 3.5 10 0.9 0.7 -
M10 M10x1.25 M10x1 8.6 9 9.3 19.5 4 17 0.5 0.5 0.5 4 12 1.4 1.4 1.4
M12 M12x1.5 M12x1.25 10.4 10.7 11 21.9 4.5 19 0.6 0.6 0.6 4.5 14.5 1.9 1.9 1.9
M14 M14x1.5 - 12 12.7 - 25.4 5 22 0.6 0.6 - 5 16 2.5 2.5 -
M16 M16x2 - 14.1 14.8 - 27.7 5 24 0.7 0.7 - 5 18 3.4 3.4 -
M18 M18x2 M18x1.5 15.5 16.2 16.8 31.2 5.5 27 0.7 0.7 0.7 5.5 20.5 4.1 4.1 4.1
M20 M20x2 M20x1.5 17.6 18.3 18.8 34.6 6 30 0.8 0.8 0.7 6 22 5.8 5.8 5.1
M22 M22x2 M22x1.5 19.6 20.3 20.8 36.9 6 32 0.8 0.8 0.7 6 24 6.4 6.4 5.6
M24 M24x2 M24x1.5 21 22.5 22.8 41.6 7 36 0.9 0.9 0.7 7 26 9.5 9.5 7.4
M27 M27x2 - 24.2 25.5 - 47.3 7 41 1 1 - 7 29 13 13 -
M30 M30x2 - 26.6 28.5 - 53.1 8 46 1.1 1 - 8 32 17.5 16 -
M33 M33x2 - 29.8 31.5 - 57.7 8 50 1.2 1 - 8 34 22 18.5 -
M36 M36x2 - 32.2 33.6 - 63.5 9 55 1.3 1.3 - 9 38 29 29 -
M39 M39x2 - 35.2 36.6 - 69.3 9 60 1.3 1.3 - 9 40 32 32 -
M42 M42x2 - 37.6 39.8 - 75 11 65 1.4 1.4 - 11 45 45 45 -
M45 M45x2 - 40.9 42.8 - 80.8 12 70 1.5 1.5 - 12 48 64 64 -
M48 M48x2 - 43.9 45.8 - 86.5 14 75 1.6 1.5 - 14 52 80 75 -
M52 M52x2 - 48.2 49.8 - 92.4 16 80 1.7 1.5 - 16 58 95 80 -
