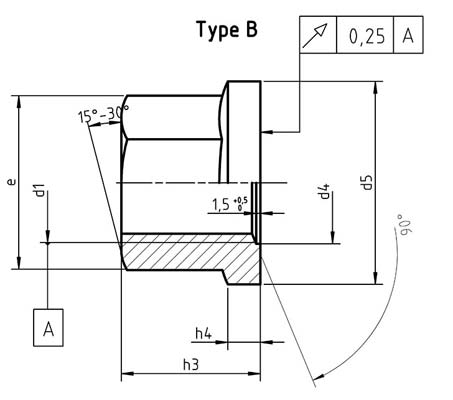

DIN 74361 B
» Resources » Dimensional Standards » Nuts » DIN 74361 B
» Resources » Dimensional Standards » Nuts » DIN 74361 B
| thread d | s | h | h1 | d2 | d1 | e min |
|---|---|---|---|---|---|---|
| M14x1.5 | 19 | 16 | 3.5 | 27 | 14.77 | 21.1 |
| M18x1.5 | 24 | 19 | 4.5 | 29 | 18.83 | 26.51 |
| M20x1.5 | 27 | 21 | 5.5 | 34 | 20.83 | 29.87 |
| M22x1.5 | 30 | 23 | 6.5 | 36 | 22.83 | 33.23 |
