DIN 6915

Equivalent Standards

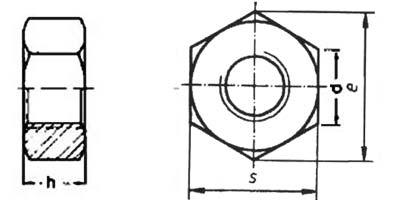

DIN 6915 Heavy Hex Nut Dimensions

d	s	e min	h	Pitch
M12	22	23.91	10	1.75
M16	27	29.56	13	2.00
M20	32	35.03	16	2.50
M22	36	39.55	18	2.50
M24	41	45.20	19	3.00
M27	46	50.35	22	3.00
M30	50	55.37	24	3.50
M36	60	66.44	29	4.00

DIN 6915 Heavy Hex Nuts Weights

Size	Weight
M12	23.3
M16	44.8
M20	73.9
M22	104
M24	155
M27	224
M30	300
M36	515

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
