DIN 582

Equivalent Standards

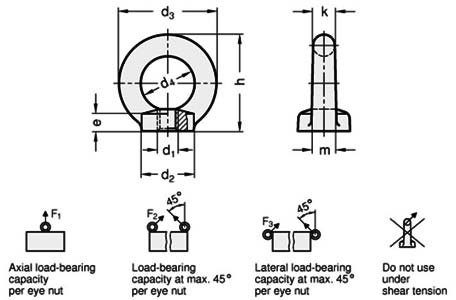

Forged Lifting Eye Nuts Dimensions

d1	d2	d3	d4	e	h	k	m
M 8	20	36	20	8.5	36	8	10
M 10	25	45	25	10	45	10	12
M 12	30	54	30	11	53	12	14
M 16	35	63	35	13	62	14	16
M 20	40	72	40	16	71	16	19
M 24	50	90	50	20	90	20	24
M 30	65	108	60	25	109	24	28
M 36	75	126	70	30	128	28	32

DIN 582 Lifting Eye Nuts Weights

Size	Weight in kg per piece
M8	0.05
M10	0.09
M12	0.16
M16	0.24
M20	0.36
M24	0.72
M30	1.32
M36	2.08
M42	3.11
M48	5.02
M56	6.69
M64	9.30
M72	18.5
M80	27.3
M100	36.4

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
