DIN 548
» Resources » Dimensional Standards » Nuts » DIN 548
» Resources » Dimensional Standards » Nuts » DIN 548

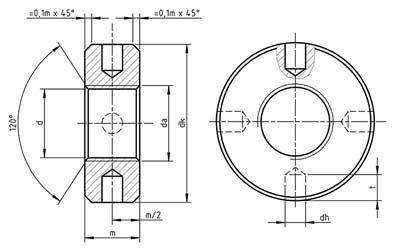

| Thread size d | p | da | dh | dk | m | t | weight kg/1000pcs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | nom = min | max | nom = max | min | nom = max | min | min | max | |||
| M2 | 0.4 | 2 | 2.3 | 1 | 1.14 | 5.5 | 5.2 | 2 | 1.75 | 1 | 1.4 | 0.31 |
| M2.5 | 0.45 | 2.5 | 2.9 | 1.2 | 1.34 | 7 | 6.64 | 2.2 | 1.95 | 1.3 | 1.7 | 0.56 |
| M3 | 0.5 | 3 | 3.45 | 1.5 | 1.64 | 8 | 7.64 | 2.5 | 2.25 | 1.3 | 1.7 | 0.83 |
| M3.5 | 0.6 | 3.5 | 4 | 1.5 | 1.64 | 9 | 8.64 | 3 | 2.75 | 1.8 | 2.2 | 1.26 |
| M4 | 0.7 | 4 | 4.6 | 1.5 | 1.64 | 10 | 9.64 | 3.5 | 3.2 | 1.8 | 2.2 | 1.83 |
| M5 | 0.8 | 5 | 5.75 | 2 | 2.14 | 12 | 11.57 | 4.2 | 3.9 | 2.3 | 2.7 | 3.08 |
| M6 | 1 | 6 | 6.75 | 2.5 | 2.64 | 14 | 13.57 | 5 | 4.7 | 2.8 | 3.2 | 4.93 |
| M8 | 1.25 | 8 | 8.75 | 3 | 3.14 | 18 | 17.57 | 6.5 | 6.14 | 3.3 | 3.8 | 10.5 |
| M10 | 1.5 | 10 | 10.8 | 3.5 | 3.68 | 22 | 21.48 | 8 | 7.64 | 3.8 | 4.3 | 19.3 |
