DIN 439 A

Equivalent Standards

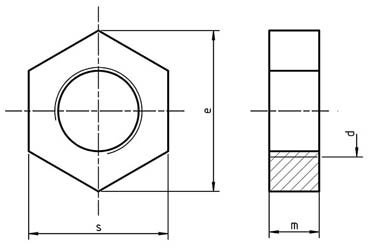

DIN 439 A Hexagon thin nuts unchamfered Dimensions

d1	s	e	m
M2	4	4.32	1.2
M3	5.5	6.01	1.8
M4	7	7.66	2.2
M5	8	8.79	2.7
M6	10	11.05	3.2
M8	13	14.38	4
M10	17	18.9	5
M12	19	21.1	6
M14	22	24.49	7
M16	24	26.75	8
M18	27	29.56	9
M20	30	32.92	10
M22	32	35.03	11
M24	36	39.55	12
M27	41	45.2	13.5
M30	46	50.85	15
M33	50	55.37	16.5
M36	55	60.79	18

DIN 439 A Hexagon Thin Nuts Weights

Size	Weight
M1.6	0.06
M1.8	0.08
M2	0.11
M2.5	0.22
M3	0.29
M3.5	0.37
M4	0.57
M5	0.83
M6	1.60
M8	3.20
M10	7.20
M12	10.4
M14	15.9
M16	20.5
M18	29.6
M20	40.2
M22	48.3
M24	69.5
M27	101
M30	139
M33	183
M36	244
M39	316
M42	403
M45	500
M48	617
M52	755

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
