DIN 431
» Resources » Dimensional Standards » Nuts » DIN 431
» Resources » Dimensional Standards » Nuts » DIN 431

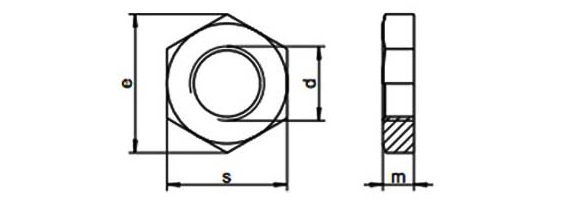

| d | m | s | e |
|---|---|---|---|
| G1/8" | 6 | 18 | 19.85 |
| G1/8" | 6 | 19 | 19.85 |
| G1/4" | 6 | 21 | 22.78 |
| G1/4" | 6 | 22 | 22.78 |
| G3/8" | 7 | 27 | 29.56 |
| G1/2" | 8 | 32 | 37.29 |
| G1/2" | 8 | 34 | 37.29 |
| G5/8" | 8 | 32 | 37.29 |
| G5/8" | 8 | 34 | 37.29 |
| G3/4" | 9 | 36 | 39.55 |
| G7/8" | 9 | 41 | 45.20 |
| G1" | 10 | 46 | 50.85 |
| G1 1/8" | 10 | 50 | 55.37 |
| G1 1/4" | 11 | 55 | 60.79 |
| G1 1/2" | 12 | 60 | 66.44 |
| G2" | 13 | 75 | 82.60 |
