Din 314
» Resources » Dimensional Standards » Nuts » Din 314
» Resources » Dimensional Standards » Nuts » Din 314

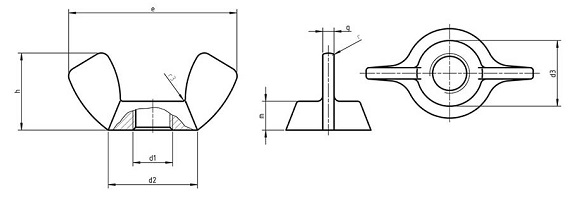

| Size | Thread Size(d1) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d2 | d3 | e | g | h | m | ||||||
| max | min | max | min | max | min | min | max | min | max | min | ||
| M4 | 0.7 | 9 | 7 | 7 | 5.5 | 21 | 19 | 1.1 | 11 | 9 | 4.6 | 3.2 |
| M5 | 0.8 | 12 | 9 | 9 | 7.5 | 26.5 | 24.5 | 1.5 | 13 | 11 | 6 | 4 |
| M6 | 1 | 14 | 11 | 11 | 9 | 32 | 29 | 1.5 | 16 | 14 | 7 | 5 |
| M8 | 1.25 | 16 | 13 | 12.5 | 10.5 | 38 | 35 | 2 | 19 | 17 | 8.5 | 6.5 |
| M10 | 1.5 | 21 | 18 | 16 | 14 | 50 | 47 | 3.6 | 24 | 22 | 10 | 8 |
| M12 | 1.75 | 24 | 21 | 19 | 17 | 66 | 63 | 4.1 | 32 | 29 | 13 | 10 |
