DIN 1587
» Resources » Dimensional Standards » Nuts » DIN 1587
» Resources » Dimensional Standards » Nuts » DIN 1587

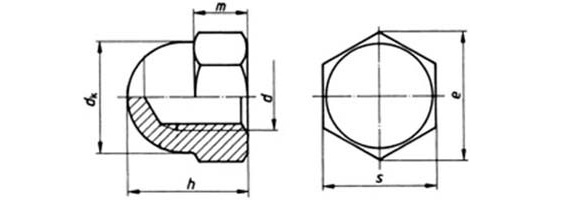

| d | m | h | s | e | dk | ♦ |
|---|---|---|---|---|---|---|
| M3 | 2.4 | 7 | 5.5 | 6.01 | 5.5 | 5.5 |
| M4 | 3.2 | 8 | 7.0 | 7.66 | 6.5 | 7.0 |
| M5 | 4.0 | 10 | 8.0 | 8.79 | 7.5 | 8.0 |
| M6 | 5.0 | 12 | 10.0 | 11.05 | 9.5 | 10.0 |
| M8 | 6.5 | 15 | 13.0 | 14.38 | 12.5 | 13.0 |
| M10 | 8.0 | 18 | 17.0 | 18.90 | 16.0 | 17.0 |
| M12 | 10.0 | 22 | 19.0 | 21.10 | 18.0 | 19.0 |
| M14 | 11.0 | 25 | 22.0 | 24.49 | 21.0 | 22.0 |
| M16 | 13.0 | 28 | 24.0 | 26.75 | 23.0 | 24.0 |
| M18 | 15.0 | 32 | 27.0 | 30.14 | 26.0 | 27.0 |
| M20 | 16.0 | 34 | 30.0 | 33.53 | 28.0 | 30.0 |
| M22 | 18.0 | 39 | 34.0 | 37.72 | 33.0 | 34.0 |
| M24 | 19.0 | 42 | 36.0 | 39.98 | 34.0 | 36.0 |
| M27 | 20.0 | 47 | 41.0 | 47.30 | 40.0 | 41.0 |
| M30 | 24.0 | 52 | 46.0 | 52.00 | 42.0 | 46.0 |
| Size | Weight |
|---|---|
| M6 | 4.66 |
| M8 | 11 |
| M10 | 20.1 |
| M12 | 28.3 |
| M14 | 57.2 |
| M16 | 54.3 |
| M18 | 95 |
| M20 | 104 |
| M22 | 129 |
| M24 | 216 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
