DIN 7992

Equivalent Standards

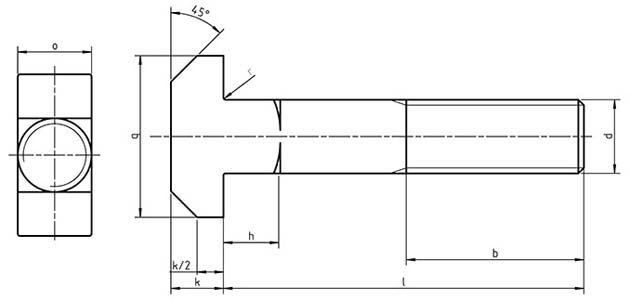

DIN 7992 T-head bolts with large head Dimensions

d	p	k	h	r	o	b	q
M24	3	18	18	1.6	24	100	65
M30	3.5	22	20	1.6	30	120	75
M36	4	25	25	2	36	140	85
M42	4.5	30	30	2	42	170	95
M48	5	35	30	2	48	200	110
M56	5.5	40	30	3	56	220	125
M64	6	50	30	3	64	240	140
M72	6	55	30	4	72	260	155
M80	6	60	30	4	80	290	170
M90	6	70	30	4	90	320	185
M100	6	75	30	5	100	350	205
