DIN 797

» Resources » Dimensional Standards » Bolts » DIN 797

Equivalent Standards

Special Foundation Square Nuts

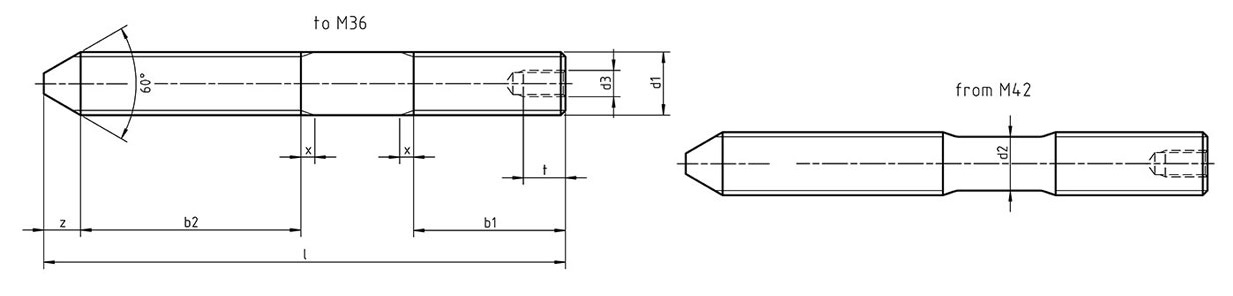

DIN 797 Special foundation bolts Dimensions

d1 b1 b2 d2 d3 t z2
M24 75 110       14
M30 85 120       18
M36 95 140   M12 22 22
M42 105 150 34 M12 22 25
M48 120 160 38 M12 22 28
M56 140 170 45 M16 26 32
M64 155 190 50 M16 26 36
M72 170 200 55 M20 26 40
M80 185 220 65 M20 33 45
M90 205 240 70 M20 33 50
M100 225 260 80 M20 33 56
