DIN 610

» Resources » Dimensional Standards » Bolts » DIN 610

Equivalent Standards

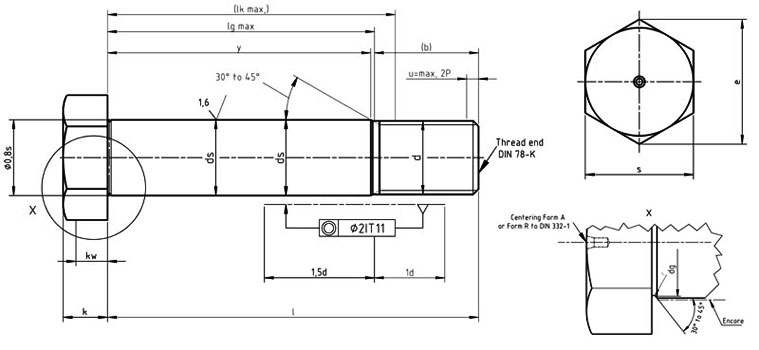

DIN 610 Hexagon fits bolts with long thread Dimensions

Thread d b ds dg e k kw r s
l <=50mm l <50 <=150mm l> 150 mm k6 min max min nom max min min min max max min
M8 - - 11.5 13.5 18.5 9 7.9 8.2 14.38 5.3 5.15 5.45 3.6 0.4 0.55 13 12.73
M10 - - 13.5 15.5 20.5 11 9.9 10.2 17.77
18.9
5.4 5.22 6.58 4.3 0.4 0.55 16
17
15.73
16.73
M12 - - 15.5 17.5 22.5 13 11.5 11.8 19.85
20.88
7.5 7.21 7.79 5.1 0.6 0.75 18
19
17.57
18.48
M14 - - 17 19 24 15 13.5 13.8 22.78
23.91
8.8 8.51 9.09 8 0.6 0.75 21
22
20.16
21.16
M16 - - 19 21 26 17 15.5 15.8 26.17 10 9.71 10.29 6.8 0.6 0.75 24 23.16
M18 M18x1.5 M18x2 21.5 23.5 28.5 19 17.5 17.8 29.56 11.5 11.15 11.85 7.8 0.8 0.75 27 26.16
M20 M20x1.5 M20x2 22.5 24.5 29.5 21 19.1 19.4 32.95 12.5 12.15 12.85 8.5 0.9 0.95 30 29.16
