DIN 609

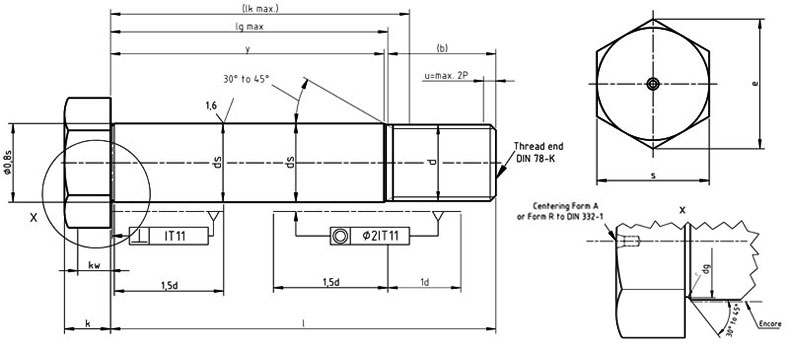

DIN 609 Hexagon fits bolts with long thread Dimensions

Thread d			b			ds			dg		e	k			kw	r		s
			l <=50mm	l <50 <=150mm	l> 150 mm	nom	max	min	max	min	min	nom	max	min	min	min	max	max	min
M8	M8x1	-	14.5	16.5	21.5	9	9.001	9.01	7.9	8.2	14.38	5.3	5.15	5.45	3.61	0.4	0.55	13	2.73
M10	M10x1.25	M10x1	17.5	19.5	24.5	11	11.001	11.012	9.9	10.2	17.777	6.4	6.22	6.58	47.35	0.4	0.55	16	15.73
M12	M12x1.25	M12x1.5	20.5	22.5	27.5	13	13.001	13.012	11.5	11.8	19.85	7.5	7.21	7.79	5.05	0.6	0.75	18	17.57
M14	M14x1.5	-	22	24	29	15	15.001	15.012	13.5	13.8	22.78	8.8	8.51	9.09	5.96	0.6	0.75	21	20.16
M16	M16x1.5	-	25	27	32	17	17.001	17.012	15.5	15.8	26.17	10	9.71	10.29	6.8	0.6	0.75	24	23.16
M18	M18x1.5	M18x2	27.5	29.5	34.5	19	19.002	19.015	17.5	17.8	29.56	11.5	11.15	11.85	7.81	0.6	0.75	27	26.16
M20	M20x1.5	M20x2	28.5	30.5	35.5	21	21.002	21.015	19.1	19.4	32.95	12.5	12.15	12.85	8.51	0.8	0.95	30	29.16
M22	M22x1.5	M22x2	32.5	34.5	39.5	23	23.002	23.015	21.1	21.4	37.29	14	13.65	14.35	9.65	0.8	0.95	34	33
M24	M24x2	M24x1.5	-	36.5	41.5	25	25.002	25.015	23.1	23.4	39.55	15	14.65	15.35	10.26	0.8	0.95	36	35
M27	M27x2	-	-	39.5	44.5	28	28.002	28.015	25.7	26	45.2	17	16.65	17.35	11.66	1	1.15	41	40
M30	M30x2	-	-	43	48	32	32.002	32.018	29.7	30	50.85	19	18.58	19.42	13.01	1	1.15	46	45
M33	M33x2	-	-	45	50	34	34.002	34.018	31.7	32	55.37	21	20.58	21.42	14.41	1	1.15	50	49
M36	M36x3	-	-	49	54	38	38.002	38.018	35.7	36	60.79	22	21.58	22.42	15.11	1	1.15	55	53.8
M39	M39x3	-	-	51	56	40	40.002	40.018	37.7	38	66.44	25	24.58	25.42	17.21	1	1.15	60	58.8
M42	M42x3	-	-	56	61	44	44.002	44.018	41.7	42	71.3	26	25.58	26.42	17.91	1	1.15	65	63.1
M45	M45x3	-	-	59	64	46	46.002	46.018	43.7	44	76.95	28	27.58	28.42	19.31	1	1.15	70	68.1
M48	M48x3	-	-	63	68	50	50.002	50.018	47.7	48	82.6	30	29.58	30.42	20.71	1	1.15	75	73.1
M52	M52x3	-	-	65	70	55	55.002	55.021	52.7	53	88.25	33	32.5	33.5	22.75	1	1.15	80	78.1
