DIN 608

Equivalent Standards

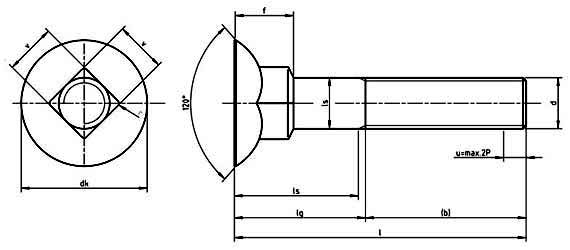

DIN 608 Flat countersunk square neck bolts Dimensions

Thread d	p	b	dk		ds		f		r	v
			max	min	max	min	max	min	max	max	min
M10	1.5	26	19.65	18.35	10	9.42	8.45	7.55	1.5	10.58	9.42
M12	1.75	30	24.65	23.35	12	11.3	11.05	9.95	1.8	12.7	11.3
