DIN 605

Equivalent Standards

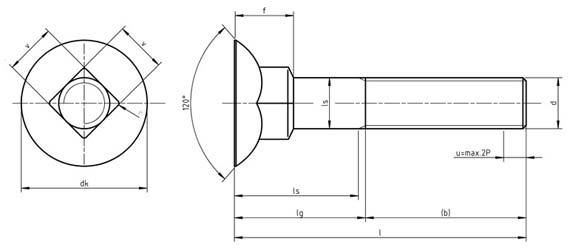

DIN 605 Flat countersunk square neck bolts with hexagon nut Dimensions

Thread d	p	b			dk		ds		f		r	v
		l?125mm	125<l?200mm	l>200mm	max	min	max	min	max	min	max	max	min
M6	1	18	24	-	16.55	15.45	6	5.52	7.45	6.55	0.9	6.48	5.52
M8	1.25	22	28	41	20.65	19.35	8	7.42	9.45	8.55	1.2	8.58	7.42
M10	1.5	26	32	45	24.65	23.35	10	9.42	11.55	9.45	1.5	10.58	9.42
