DIN 529-F
» Resources » Dimensional Standards » Bolts » DIN 529-F
» Resources » Dimensional Standards » Bolts » DIN 529-F

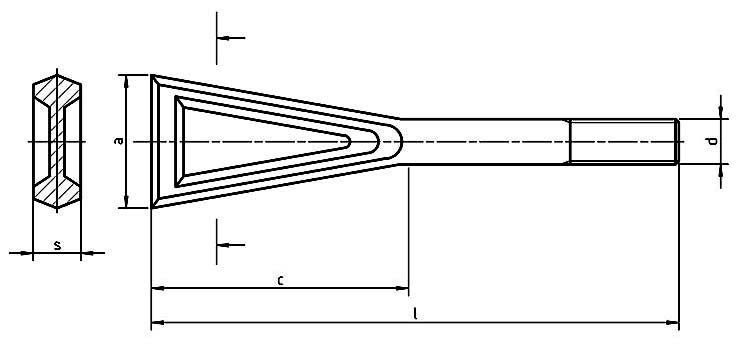

Thread Size d | p | b | a ± 3 | c ± 5 | s ± 1.5 |
---|---|---|---|---|---|
M8 | 1.25 | 20 | 14 | 50 | 6 |
M10 | 1.5 | 25 | 16 | 50 | 8 |
M12 | 1.75 | 30 | 20 | 55 | 10 |
M16 | 2 | 40 | 25 | 85 | 14 |
M20 | 2.5 | 50 | 30 | 92 | 18 |
M24 | 3 | 60 | 35 | 120 | 22 |
M30 | 3.5 | 75 | 45 | 130 | 26 |
M36 | 4 | 90 | 55 | 190 | 30 |
M42 | 4.5 | 105 | 65 | 200 | 36 |
M48 | 5 | 120 | 75 | 220 | 42 |
M56 | 5.5 | 140 | - | - | - |
M64 | 6 | 160 | - | - | - |
M72x6 | 6 | 180 | - | - | - |
