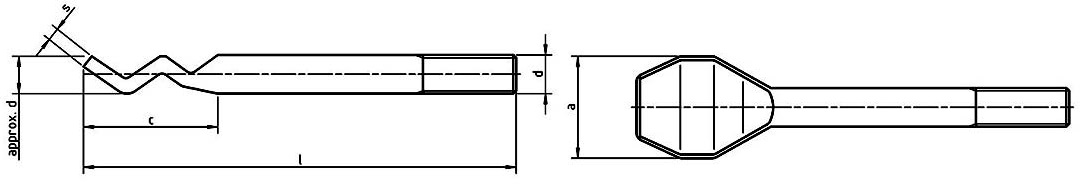

DIN 529-D
» Resources » Dimensional Standards » Bolts » DIN 529-D
» Resources » Dimensional Standards » Bolts » DIN 529-D
| Thread Size d | p | b | a ± 3 | c ± 5 | s ± 1.5 |
|---|---|---|---|---|---|
| M8 | 1.25 | 20 | 16 | 24 | 3 |
| M10 | 1.5 | 25 | 20 | 30 | 3.5 |
| M12 | 1.75 | 30 | 24 | 36 | 4 |
| M16 | 2 | 40 | 32 | 48 | 5 |
| M20 | 2.5 | 50 | 40 | 60 | 6 |
| M24 | 3 | 60 | 48 | 72 | 8 |
| M30 | 3.5 | 75 | - | - | - |
| M36 | 4 | 90 | - | - | - |
| M42 | 4.5 | 105 | - | - | - |
| M48 | 5 | 120 | - | - | - |
| M56 | 5.5 | 140 | - | - | - |
| M64 | 6 | 160 | - | - | - |
| M72x6 | 6 | 180 | - | - | - |
