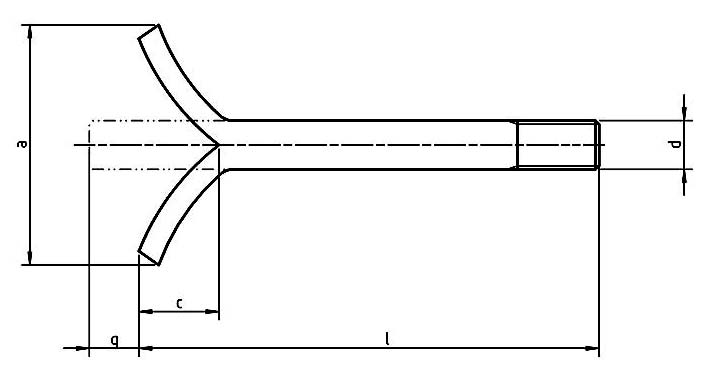

DIN 529-C
» Resources » Dimensional Standards » Bolts » DIN 529-C
» Resources » Dimensional Standards » Bolts » DIN 529-C
| Thread Size d | p | b | a ± 3 | c ± 5 | g approx. |
|---|---|---|---|---|---|
| M8 | 1.25 | 20 | 24 | 45 | 5 |
| M10 | 1.5 | 25 | 30 | 55 | 7 |
| M12 | 1.75 | 30 | 36 | 65 | 8 |
| M16 | 2 | 40 | 48 | 85 | 11 |
| M20 | 2.5 | 50 | 60 | 105 | 14 |
| M24 | 3 | 60 | 75 | 125 | 18 |
| M30 | 3.5 | 75 | 95 | 155 | 24 |
| M36 | 4 | 90 | 115 | 190 | 30 |
| M42 | 4.5 | 105 | 135 | 220 | 34 |
| M48 | 5 | 120 | 155 | 250 | 40 |
| M56 | 5.5 | 140 | 180 | 290 | 45 |
| M64 | 6 | 160 | 200 | 335 | 50 |
| M72x6 | 6 | 180 | 240 | 370 | 60 |
