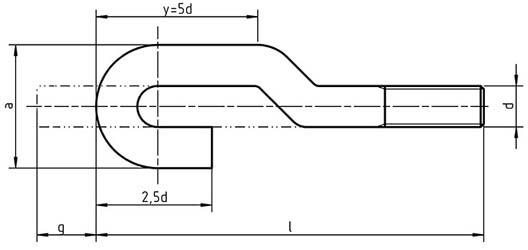

DIN 529-B
» Resources » Dimensional Standards » Bolts » DIN 529-B
» Resources » Dimensional Standards » Bolts » DIN 529-B
Thread Size d | p | b | a ± 3 | g approx. |
---|---|---|---|---|
M8 | 1.25 | 20 | 24 | - |
M10 | 1.5 | 25 | 30 | - |
M12 | 1.75 | 30 | 36 | - |
M16 | 2 | 40 | 48 | 45 |
M20 | 2.5 | 50 | 60 | 55 |
M24 | 3 | 60 | 75 | 70 |
M30 | 3.5 | 75 | 95 | 90 |
M36 | 4 | 90 | 115 | 110 |
M42 | 4.5 | 105 | 135 | 125 |
M48 | 5 | 120 | 155 | 140 |
M56 | 5.5 | 140 | 180 | 165 |
M64 | 6 | 160 | 200 | 185 |
M72x6 | 6 | 180 | 240 | 215 |
