DIN 914

Equivalent Standards

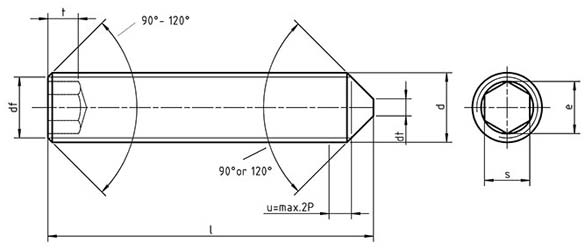

DIN 914 Hexagon socket set screws with cone point Dimensions

Thread d	p	df	dt		e	s			t
		approx.	max	min	min	nominal	min	max	min	min
M1.4	0.3		-	-	0.803	0.7	0.711	0.724	0.6	1.4
M1.6	0.35		-	-	0.803	0.7	0.711	0.724	0.7	1.5
M1.8	0.35		-	-	0.803	0.7	0.711	0.724	0.8	1.6
M2	0.4		-	-	1.003	0.9	0.889	0.902	0.8	1.7
M2.5	0.45		-	-	1.427	1.3	1.27	1.295	1.2	2
M3	0.5		-	-	1.73	1.5	1.52	1.545	1.2	2
M4	0.7		-	-	2.3	2	2.02	2.045	1.5	2.5
M5	0.8		-	-	2.87	2.5	2.52	2.56	2	3
M6	1		1.5	0.9	3.44	3	3.02	3.08	2	3.5
M8	1.25		2	1.4	4.58	4	4.02	4.095	3	5
M10	1.5		2.5	1.9	5.72	5	5.02	5.095	4	6
M12	1.75		3	2.4	6.86	6	6.02	6.095	4.5	8
M14	2		4	3.25	6.86	6	6.02	6.095	5.6	9
M16	2		4	3.25	9.15	8	8.025	8.115	6.4	10
M18	2.5		5	4.25	11.43	10	10.025	10.115	7.2	11
M20	2.5		5	4.25	11.43	10	10.025	10.115	8	12
M22	2.5		6	5.25	13.72	12	12.032	12.142	9	13.5
M24	3		6	5.25	13.72	12	12.032	12.142	10	15

DIN 914 Socket Set Screws Weights

Diameter	M1.4	M1.6	M1.8	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24
Length
2.5	0.018	0.019	0.030
3	0.022	0.028	0.036	0.044	0.075
4	0.029	0.037	0.048	0.059	0.100	0.14
5	0.036	0.046	0.060	0.074	0.125	0.18	0.255	0.42
6	0.043	0.056	0.072	0.089	0.150	0.22	0.38	0.54	0.74
8				0.119	0.199	0.31	0.53	0.78	1.09	1.88
10				0.148	0.249	0.40	0.68	1.02	1.44	2.51
12						0.49	0.83	1.26	1.79	3.14	4.73
16						0.67	1.13	1.74	2.49	4.40	6.73	9.5
20						0.85	1.43	1.22	3.19	5.66	8.71	12.3	20.9
25								2.82	4.07	7.25	11.2	15.9	27.4	41.4
30									4.95	8.84	13.7	19.5	34.0	51.7	70.3
35									5.83	10.40	16.2	23.1	40.5	62.0	85.3
40										12.00	18.7	26.7	47.1	72.3	100
45														82.6	115
50														92.9	130
55															145
60															160

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
