DIN 7981 F

» Resources » Dimensional Standards » Screws » DIN 7981 F

Equivalent Standards

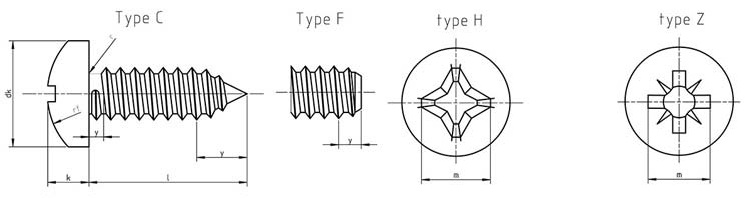

DIN 7981 F Pan head tapping screws with cross recess H and Z, Form F Dimensions

Thread size p a dk k r rf cross recess Type H Type Z Y max
m Penetration depth m Penetration depth
max nominal=max min nominal=max min max approx No. approx min max approx min max Type C Type F
ST 2.2 0.8 0.8 4.2 3.9 1.8 1.55 0.3 3.4 1 2.6 0.86 1.32 2.4 1.1 1.35 2 1.6
ST 2.9 1.1 1.1 5.6 5.3 2.2 1.95 0.4 4.4 1 3 1.35 1.8 2.9 1.58 1.83 2.6 2.1
ST 3.5 1.3 1.3 6.9 6.54 2.6 2.35 0.5 5.4 2 4.2 1.4 2.03 3.9 1.47 1.93 3.2 2.5
ST 3.9 1.3 1.3 7.5 7.14 2.8 2.55 0.5 5.8 2 4.4 1.63 2.26 4.1 1.7 2.16 3.5 2.7
ST 4.2 1.4 1.4 8.2 7.84 3.05 2.75 0.6 6.2 2 4.6 1.8 2.46 4.3 1.88 2.34 3.7 2.8
ST 4.8 1.6 1.6 9.5 9.14 3.55 3.25 0.7 7.2 2 5 2.26 2.87 4.7 2.28 2.74 4.3 3.2
ST 5.5 1.8 1.8 10.8 10.37 3.95 3.65 0.8 8.2 3 6.5 2.49 3.15 6.2 2.51 2.97 5 3.6
ST 6.3 1.8 1.8 12.5 12.07 4.55 4.25 0.9 9.5 3 7.1 3 3.66 6.7 3.02 3.48 6 3.6

DIN 7981 Phillip Pan Head Tapping Screws Weights

Diameter M2.2 M2.9 M3.5 M3.9 M4.2 M4.8 M5.5 M6.3
Length
4.5 0.16
6.5 0.2 0.4
9.5 0.26 0.51 0.79 1.05 1.22 1.85
13 0.33 0.63 0.97 1.27 1.46 2.2 3.2 3.9
16 0.39 0.74 1.12 1.46 1.67 2.5 3.6 4.44
19 0.85 1.27 1.65 1.88 2.8 4 4.98
22 1.42 1.84 2.1 3.1 4.38 5.52
25 1.57 2.03 2.3 3.4 4.76 6.06
32 2.8 4.1 5.67 7.32
38 4.7 6.45 8.4

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
