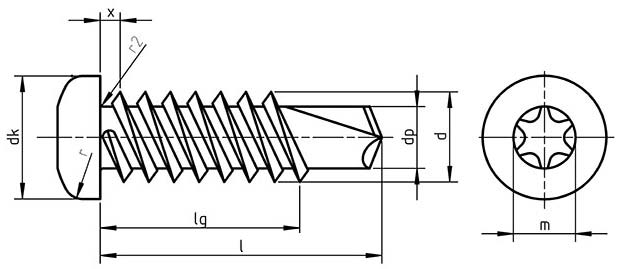

DIN 7504 NTX
» Resources » Dimensional Standards » Screws » DIN 7504 NTX
» Resources » Dimensional Standards » Screws » DIN 7504 NTX
| d | dk max | k max | s TORX |
|---|---|---|---|
| 2.9 | 5.6 | 2.2 | 10 |
| 3.5 | 6.9 | 2.6 | 15 |
| 3.9 | 7.5 | 2.8 | 20 |
| 4.2 | 8.2 | 3.05 | 20 |
| 4.8 | 9.5 | 3.55 | 25 |
| 5.5 | 10.8 | 3.95 | 25 |
| 6.3 | 12.5 | 4.55 | 30 |
