DIN 464

» Resources » Dimensional Standards » Screws » DIN 464

Equivalent Standards

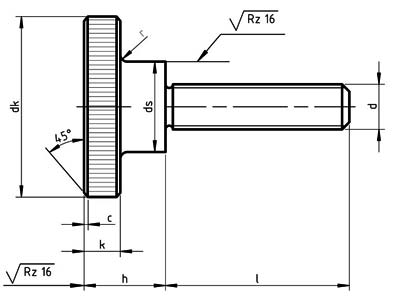

DIN 464 Knurled thumb screws Dimensions

Thread d p b c dk ds h k n r t
nom max min nom = max. min nom max min nom=max min nom min max min max
M1 0.25 3 - 5.5 5.74 5.26 2.8 2.55 3.5 3.74 3.26 1.5 1.25 0.3 0.36 0.5 0.5 0.7 0.9
M1.2 0.25 3.5 - 6 6.24 5.76 3 2.75 4 4.24 3.76 1.5 1.25 0.4 0.46 0.6 0.5 0.8 1
M1.4 0.3 4 - 7 7.29 6.71 3.5 3.2 4.7 4.94 4.46 2 1.75 0.4 0.46 0.6 0.5 0.9 1.15
M1.6 0.35 5 - 7.5 7.79 7.21 3.8 3.5 5 5.24 4.76 2 1.75 0.4 0.46 0.6 0.5 1 1.3
M2 0.4 6 0.3 9 9.29 8.71 4.5 4.2 5.3 5.54 5.06 2 1.75 0.5 0.56 0.7

0.5

1.1 1.4
M2.5 0.45 8 0.3 11 11.35 10.65 5 4.7 6.5 6.79 6.21 2.5 2.25 0.6 0.66 0.8 0.5 1.5 1.8
M3 0.5 9 0.4 12 12.35 11.65 6 5.7 7.5 7.79 7.21 2.5 2.25 0.8 0.86 1 0.5 1.8 2.2
M3.5 0.6 10 0.4 14 14.35 13.65 7 6.64 8.5 8.79 8.21 3 2.75 0.8 0.86 1 0.5 2 2.5
M4 0.7 12 0.4 16 16.35 15.65 8 7.64 9.5 9.79 9.21 3.5 3.2 1 1.06 1.2 0.5 2.2 2.7
M5 0.8 15 0.5 20 20.42 19.58 10 9.64 11.5 11.85 11.15 4 3.7 1.2 1.26 1.51 1 2.8 3.4
M6 1 18 0.6 24 24.42 23.58 12 11.57 15 15.35 14.65 5 4.7 1.6 1.66 1.91 1 3.5 4.3
M8 1.25 24 0.6 30 30.42 29.58 16 15.57 18 18.35 17.65 6 5.7 2 2.06 2.31 2 4.5 5.5
M10 1.5 30 - 36 36.5 35.5 20 19.48 23 23.42 22.58 8 7.64 2.5 2.56 2.81 2 6 7
