DIN 316 A

Equivalent Standards

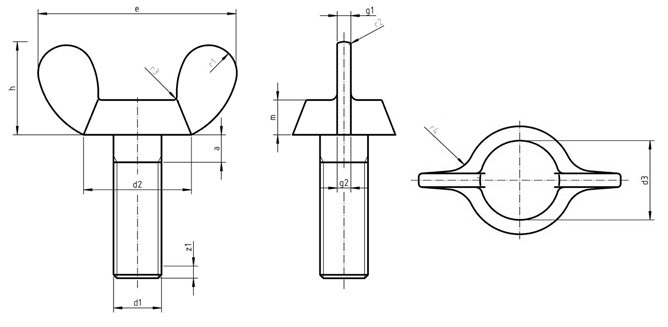

DIN 316 A Wing screws with rectangular wings Dimensions

e	h	m	d
17.6	8.6	2.9	M3
17.6	8.6	2.9	M4
22.5	11	4.1	M5
27.8	13.6	5.1	M6
30.3	14.8	5.6	M8
36.2	17.7	6.8	M10
49.4	24.1	9	M12
